Description

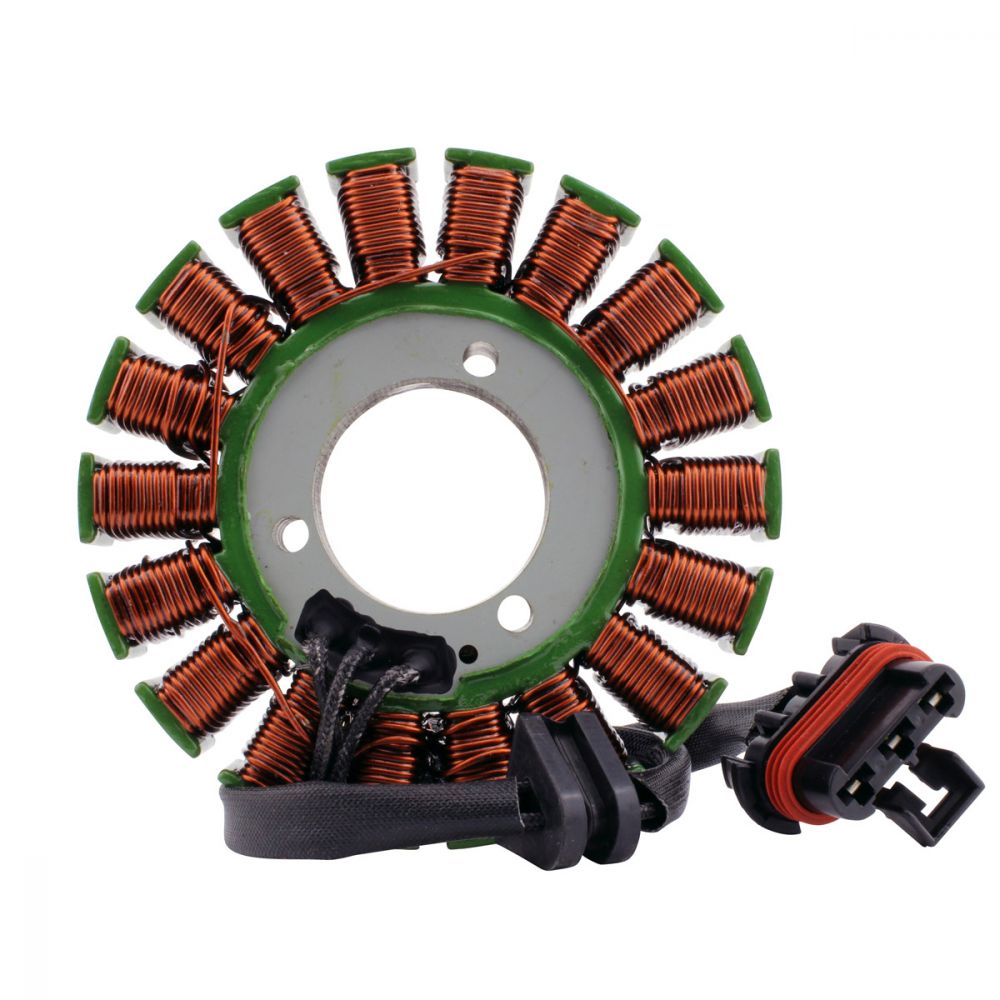

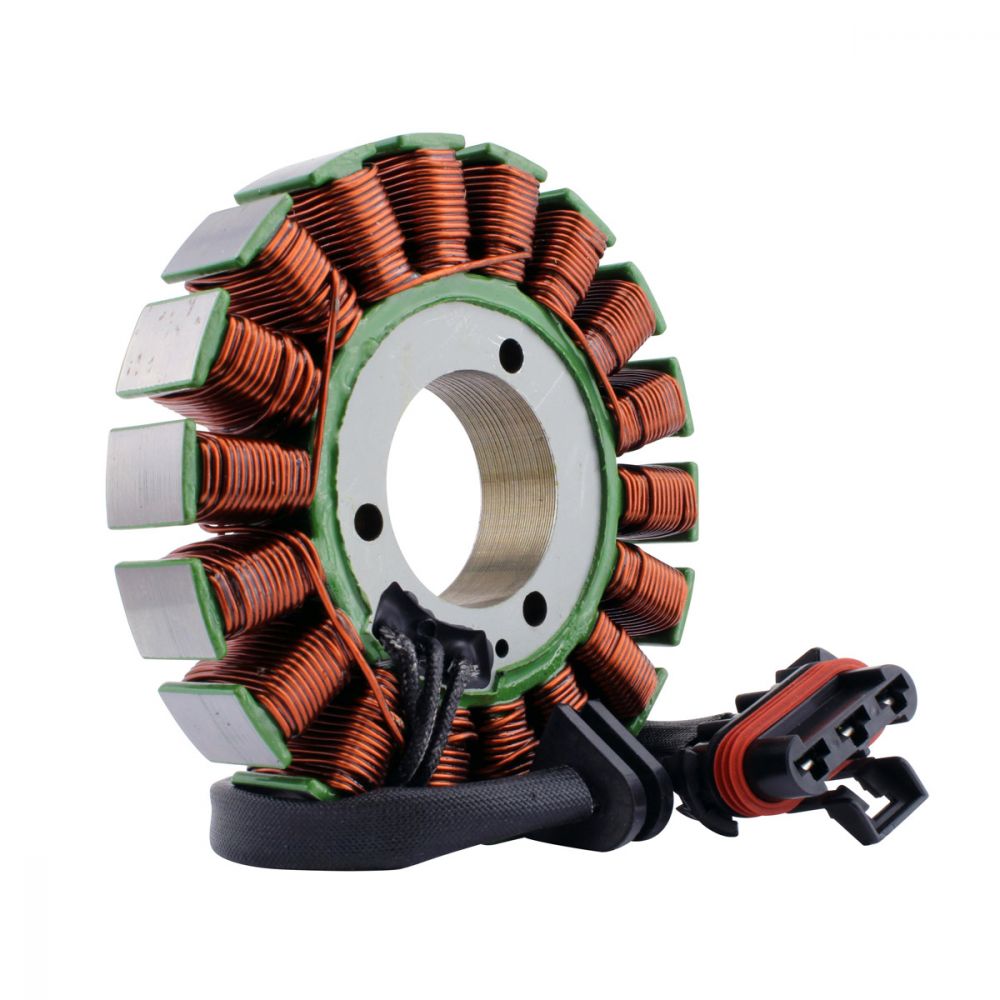

Stator for Victory Cross Country – Roads / Hammer / Highball / Jackpot / Kingpin / Magnum / Vegas / Vision 2008-2017
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
Battery condition is extremely important. No stator can work correctly with a bad or weak battery.
Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
PLEASE NOTE : The OEM 2204532 is corresponding to the kit Stator + Rotor offered by Polaris Victory and it is a replacement for all the following OEM part #s :4011061 / 4011887 / 4011920 / 4012363 / 4012364
Note Our part corresponds to the stator in this kit WE DO NOT INCLUDED the rotor.
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 126 mm
Thickness : 19 mm
Length of wires stator to grommet : 80 mm
Length of wires grommet to plug : 275 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Between each Black = 0.4 ohms +/-20%
Fits the Following Victory Motorcycles
2017 Victory Vision
2017 Victory Vegas
2017 Victory Magnum
2017 Victory Judge
2017 Victory High-Ball
2017 Victory Hammer
2017 Victory Gunner
2017 Victory Cross Country
2016 Victory Vision
2016 Victory Vegas
2016 Victory Magnum
2016 Victory Judge
2016 Victory Jackpot
2016 Victory High-Ball
2016 Victory Hammer
2016 Victory Gunner
2016 Victory Cross Country
2015 Victory Vision
2015 Victory Vegas
2015 Victory Magnum
2015 Victory Judge
2015 Victory Jackpot
2015 Victory High-Ball
2015 Victory Hammer
2015 Victory Gunner
2015 Victory Cross Country
2015 Victory Boardwalk
2014 Victory Vision
2014 Victory Vegas
2014 Victory Judge
2014 Victory Jackpot
2014 Victory High-Ball
2014 Victory Hammer
2014 Victory Cross Roads
2014 Victory Cross Country
2014 Victory Boardwalk
2013 Victory Vision
2013 Victory Vegas
2013 Victory Judge
2013 Victory Jackpot
2013 Victory High-Ball
2013 Victory Hard-Ball
2013 Victory Hammer
2013 Victory Cross Roads
2013 Victory Cross Country
2013 Victory Boardwalk
2012 Victory Vision
2012 Victory Vegas
2012 Victory Kingpin
2012 Victory Jackpot
2012 Victory High-Ball
2012 Victory Hard-Ball
2012 Victory Hammer
2012 Victory Cross Roads
2012 Victory Cross Country
2011 Victory Vision
2011 Victory Vegas
2011 Victory Kingpin
2011 Victory Jackpot
2011 Victory Hammer
2011 Victory Cross Roads
2011 Victory Cross Country
2010 Victory Vision
2010 Victory Vegas
2010 Victory Kingpin
2010 Victory Jackpot
2010 Victory Hammer
2010 Victory Cross Roads
2010 Victory Cross Country
2009 Victory Vision
2009 Victory Vegas
2009 Victory Kingpin
2009 Victory Jackpot
2009 Victory Hammer
2009 Victory Cory Ness Jackpot
2008 Victory Vision
2008 Victory Vegas
2008 Victory Kingpin
2008 Victory Jackpot
2008 Victory Hammer
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
