Handlebar mount with Drink Holder

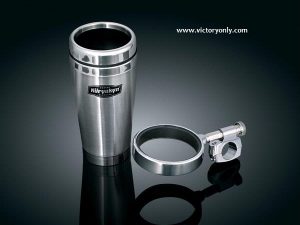

Victory Motorcycle Quick Detachable 1 inch handlebar Mount drink or Cup Holder including Stainless Steel Mug to give that quality show appearance.
Bring your beverage with you on those hot or cold days! Mount your drink holder either on your handlebars or your clutch or brake perch mounts. The quick detach thumb screw mount leaves a simple clamp when not in use. Choose either the Universal Basket Holder or Stainless Mug with Mounting Ring to hold your beverage.
Victory Motorcycle handle bar mount with Drink Holder and Stainless Steel Kuryakyn Mug included for added styling. (ea)
Fits: 1″ Bars that Victory Motorcycles use. Holds Mug included and can also be added to beverage carrier 1459 if you wanted to carry a different style cup.
- Clamps to the handlebar or the clutch/brake perch and holds an average-size cup, can, bottle or mug
- Clamp allows beverage to swivel when needed
- Choose either universal basket holder style or stainless steel mug with mounting ring
- Quick-detach mount leaves a simple clamp when not in use
Installation instructions
PARTS INCLUDED
1 1” Handlebar Clamp/Drink Ring Assembly
1 Stainless Steel Mug
1 Anti-Seize Packet
1 Hardware Kit Containing:
2 Shims
1 Thumb Nut
1 5/16″ Split Lock Washer
1 Installation Instructions
Please read and understand entire instructions before starting installation.
THANK YOU FOR CHOOSING KϋRYAKYN!
IN ORDER TO PROTECT YOU AND OTHERS FROM POSSIBLE INJURY AND/OR
PROPERTY DAMAGE OR LOSS, PLEASE PAY CLOSE ATTENTION TO ALL
INSTRUCTIONS, WARNINGS, CAUTIONS AND NOTICES REGARDING THE USE
AND CARE OF THIS PRODUCT.
TOOLS SUGGESTED
Set of Hex Wrenches
STRICTLY OBSERVE THE FOLLOWING GUIDELINES IN ORDER TO USE THE
PRODUCT PROPERLY AND AVOID POTENTIALLY DANGEROUS ACCIDENTS.
STEP 1 Read and understand all steps in the instructions before starting the
installation. Park the motorcycle on a hard, level surface and turn off the
ignition.
NOTE: Universal fitment for 1″ handlebar applications. Intended for use with
the included Stainless Steel Mug.
Ensure that the installation of this product does not
interfere with the proper operation of the motorcycle
before riding.
Avoid damage to the motorcycle. Protect painted surfaces with a
soft cloth or blanket.
LIMITED WARRANTY
Küryakyn warrants that any Küryakyn products
sold hereunder, shall be free of defects in
materials and workmanship for a period of one
(1) year from the date of purchase by the
consumer excepting the following provisions:
● Küryakyn shall have no obligation in the event
the customer is unable to provide a receipt
showing the date the customer purchased the
product(s).
●The product must be properly installed,
maintained and operated under
normal conditions.
●Küryakyn makes no warranty, expressed or
implied, with respect to any gold plated
products.
●Küryakyn shall not be liable for any
consequential and incidental damages, including
labor and paint, resulting from failure of a
Küryakyn product, failure to deliver, delay in
delivery, delivery in nonconforming condition, or
for any breech of contract or duty between
Küryakyn and a customer.
●Küryakyn products are often intended for use in
specific applications. Küryakyn makes no
warranty if a Küryakyn product is used in
applications other than intended.
●Küryakyn electrical products are warranted for
one (1) year from the date of purchase by the
consumer. L.E.D.’S contained in components of
Küryakyn products will be warranted for defects
in materials and workmanship for 3 years from
the date of purchase where as all other
components shall be warranted for one(1) year.
This includes, but is not limited to; control
modules, wiring, chrome & other components.
●Küryakyn makes no warranty of any kind in
regard to other manufacturer¹s products
distributed by Küryakyn. Küryakyn will pass on
all warranties made by the manufacturer and
where possible, will expedite the claim on behalf
of the customer, but ultimately, responsibility for
disposition of the warranty claim lies
with the manufacturer.
UNIVERSAL DRINK HOLDER 1464
1464-24MC-0713 -cont.-
THIS INDICATION ALERTS YOU TO THE FACT THAT
IGNORING THE CONTENTS DESCRIBED HEREIN CAN
RESULT IN POTENTIAL DEATH OR SERIOUS INJURY.
This indication alerts you to the fact that ignoring the
contents described herein may negatively affect product
performance and functionality or damage the product itself
or the product it is being attached to.
This indication alerts you to the fact that ignoring
the contents described herein can result in minor or
moderate potential injury.
IF INSTALLING THIS PRODUCT FOR ANOTHER PARTY,
PLEASE MAKE SURE THEY RECEIVE THIS COPY OF THE
INSTALLATION INSTRUCTIONS SO THEY ARE AWARE OF
THE IMPORTANT INFORMATION CONTAINED IN THEM.
PAGE
2
It is the installer’s responsibility to ensure that there is adequate clearance
between the Drink Holder/Mug and any painted surfaces. Küryakyn is not
responsible for any damage due to inadequate clearance.
Be aware of any cables/wires that could potentially be
pinched or crushed while using this product.
STEP 2 Determine a suitable mounting location for the Drink Ring. Ensure that
the mounting location will not interfere with the normal operation of the
motorcycle.
NOTE: The clamp may be fit with the pivot hole above or below the
handlebar depending on clearance.
IMPROPER INSTALLATION OR USE OF THIS PRODUCT COULD RESULT IN
SERIOUS INJURY OR DEATH.
STEP 3 Remove the two screws in the Handlebar Clamp.
Determine the mounting location and orientation of the Drink Ring before fully
tightening the two screws. The clamp may leave marks on the handlebar when
tightened down.
STEP 4 Hold the clamp halves together on the handlebars in the desired location. Apply Anti-Seize to the
threads and re-install the two screws from STEP 3; leave the screws finger tight for now.
STEP 5 As Shown in PIC 1, insert the threaded stud of the Drink Ring into the Clamp. Place one Shim and
the 5/16″ Split Lock Washer to the stud, secure with the Thumb Nut.
NOTE: Apply Anti-Seize on the threaded stud.
STEP 6 Once you have the Drink Ring in the desired position, place the included Stainless Steel Mug in the
ring. Turn the handlebars to their stop in both directions to make sure there is adequate clearance
between the Drink Ring/Mug and all components on the motorcycle.
ENSURE THAT THERE IS CLEARANCE AT ALL POINTS WHEN THE
HANDLEBARS ARE TURNED, INSUFFICIENT CLEARANCE MAY CAUSE
DAMAGE TO THE MOTORCYCLE OR CAN CAUSE LOSS OF CONTROL THAT
COULD RESULT IN SEVERE INJURY OR DEATH.
STEP 7 Tighten all hardware.
TO PREVENT POSSIBLE LOSS OF CONTROL, WHICH COULD RESULT IN A
POSSIBLE INJURY OR DEATH, WE DO NOT RECOMMEND REMOVING AND
REPLACING OBJECTS IN THE HOLDER WHILE RIDING THE MOTORCYCLE.
Do not overload the Drink Ring/Mug with excessive weight.
The adjust ability of the Drink Ring was not intended to prevent spills.
Ensure that the Drink Ring is secure on the Mount and that the Mount is secure on
the motorcycle. Küryakyn is not responsible for any belongings that are stolen or
damaged from use of this Drink Ring or from the Drink Ring or Mount not being
properly secured to the motorcycle. It is the installer’s responsibility to ensure that
all of the fasteners (including pre-assembled) are tightened before operation of the
motorcycle. Küryakyn will not provide warranty coverage on products or
components lost due to improper installation or lack of maintenance. Periodic
inspection and maintenance are required on all fasteners.
UNIVERSAL DRINK HOLDER INSTALLATION
PIC 1
HANDLEBAR
CLAMP
THREADED
STUD
Ride On!
VIEW FROM TOP OF HANDLEBARS
