Description

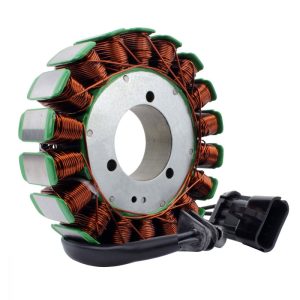

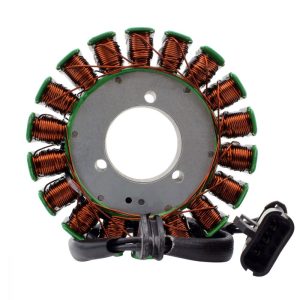

4010436 Generator Stator Victory Standard Sport Deluxe Touring Cruiser Vegas Kingpin 2002-2006
REPLACES POLARIS VICTORY PART # 4010436
PLEASE NOTE SOME 2002 – 2007 MODELS USED A STATOR WITH THE MALE PLUG STYLE IF YOURS DOES CLICK : 2002 – 2007 STATOR
Dimensions :
Interior diameter : 41 mm
Exterior diameter : 124 mm
Thickness : 34 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 220 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Black between each Black = 0.7 ohms +-20%
Brand new aftermarket stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
ASSEMBLIES WHERE 4010436 IS USED
- 2002 DELUXE CRUISER ALL OPTIONS (V02CD16) – Drive Train, Primary Cover /All Options
- 2002 DELUXE TOURING CRUISER ALL OPTIONS (V02TD16) – Drive Train, Primary Cover /All Options
- 2002 STANDARD CRUISER ALL OPTIONS (V02CB16) – Drive Train, Primary Cover /All Options
- 2002 TOURING CRUISER ALL OPTIONS (V02TB16) – Drive Train, Primary Cover /All Options
- 2003 CA CLASSIC CRUISER ALL OPTIONS (V03CB16) – Drive Train, Primary Cover /All Options
- 2003 CA TOURING CRUISER ALL OPTIONS (V03TB16) – Drive Train, Primary Cover /All Options
- 2003 VICTORY VEGAS ALL OPTIONS (V03GB16) – Drive Train, Primary Cover /All Options
- 2004 CA TOURING CRUISER ALL OPTIONS (V04TB16) – Drive Train, Primary Cover /All Options
- 2004 KINGPIN ALL OPTIONS (V04CB16) – Drive Train, Primary Cover /All Options
- 2004 VICTORY VEGAS ALL OPTIONS (V04GB16/NC16) – Drive Train, Primary Cover /All Options
- 2005 CA TOURING CRUISER ALL OPTIONS (V05TB16) – Drive Train, Primary Cover /All Options
- 2005 KINGPIN/NESS ALL OPTIONS (V05CB16/DC16) – Drive Train, Primary Cover /All Options
- 2005 VICTORY VEGAS ALL OPTIONS (V05AB16/EC16/GB16) – Drive Train, Primary Cover All Options
- 2006 CA TOURING CRUISER ALL OPTIONS (V06TB16) – Drive Train, Primary Cover /All Options
