Description

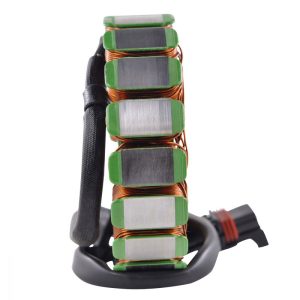

4011061 Generator Stator Victory Hammer Vegas Kingpin Jackpot 2005-2007
LOOKING FOR A VICTORY STATOR ? WE HAVE YOUR SOLUTION
PLEASE NOTE SOME 2005 TO 2007 MODELS USED A STATOR WITH THE FEMALE STYLE PLUG. IF YOURS HAS A FEMALE PLUG YOU NEED THIS ON: STATOR 2002 – 2007
NEW REPLACEMENT STATOR FOR YOUR 2005 TO 2007 VICTORY
BE SURE TO CHECK YOUR RECTIFIER
Battery condition is extremely important. No stator can work correctly with a bad or weak battery.
Always fully charge your battery before performing any charging system tests or replacing parts.
If there is any doubt, have the battery load tested or replaced.
Warranty – 2 year warranty from manufacture
Dimensions :
Interior diameter : 42 mm
Exterior diameter : 126 mm
Thickness : 24 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 245 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Wire to wire resistance :
Alternator : Black Between Black = 0.5 ohms +-20%

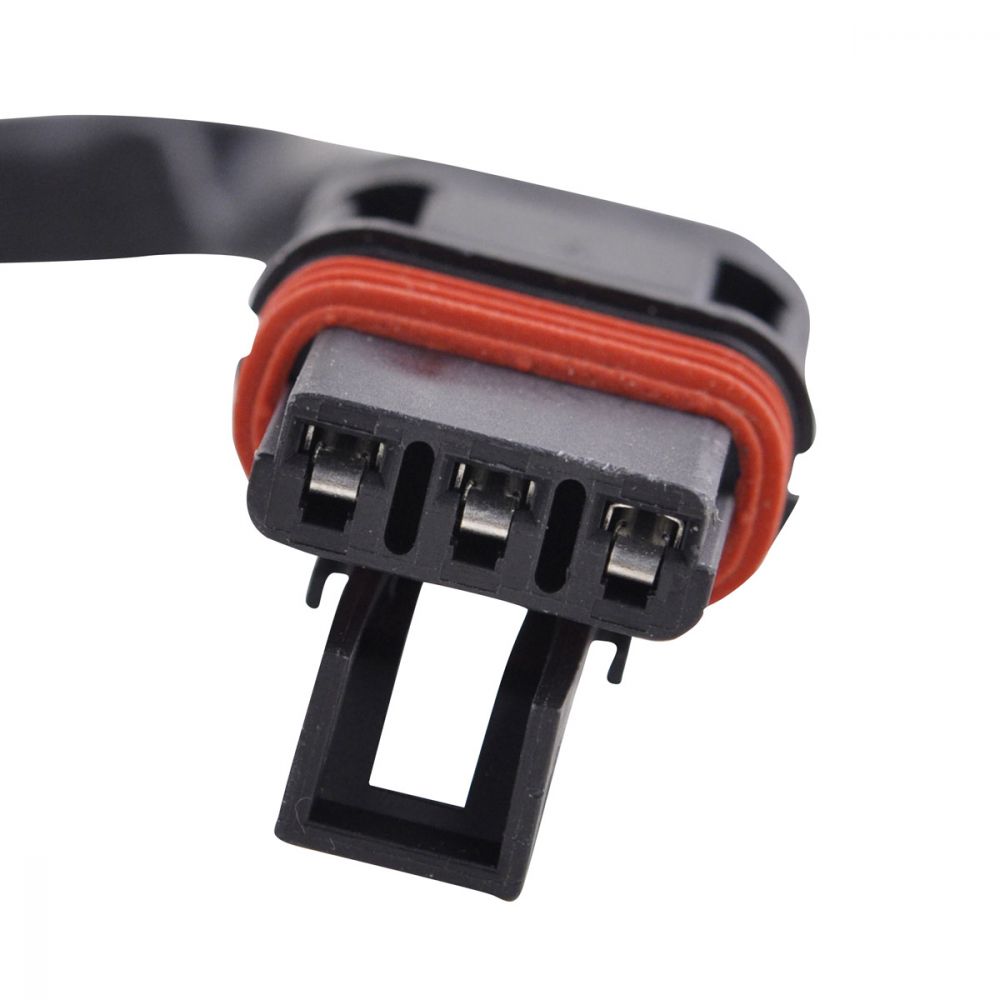

PLUG FOR Generator Stator for Victory Hammer Vegas Kingpin Jackpot Ness 8 Ball 2005-2007 | OEM Repl.# 4011061
Brand new aftermarket generator stator
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
Before installing your new stator
- Check the AC output of the stator
- Replace any burned or corroded connectors on stator and regulator rectifier
- Check and repair any melted wiring
- Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010″.
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.
- Connector included
- Rubber grommet included
- All products shipped are tested
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
- Victory Hammer, Hammer S, Hammer 8 Ball 2005-2007
- Jackpot, Jackpot Ness 2006-2007
- Victory Kingpin, Kingpin Tour, Kingpin 8, Ball Kingpin Low 2006-2007
- Victory Vegas, Vegas 8 Ball, Vegas Low, Vegas Ness 2006-2007
Do you need to replace your Stator on your Victory Motorcycle? Watch this great test Video!
