Deluxe Easy Clutch Deluxe V Wing 2000 – 2007
VICTORY MOTORCYCLE ASSIST CLUTCH

EASY ASSIST CLUTCH CLUTCH ARM

MAKES THE CLUTCH LEVER EASIER TO PULL. MAKES A REAL DIFFERENCE!!

E-Z Assist Clutch, reduces clutch pull drastically A must for riders with small hands or arthritis.

VICTORY ONLY HAS BEEN OFFERING THE EASY CLUTCHES SINCE 2000. WE ARE THE ORIGINAL AND NOT A KNOCK OFF.

MADE IN THE UNITED STATES.

TIME TESTED AND PROVEN.

THE BEST DESIGNED EASY CLUTCH ON THE MARKET TODAY,

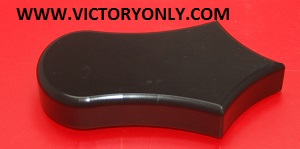

DELUXE POWDER COATED EASY CLUTCH. SAME GREAT PERFORMANCE AS THE OTHER STYLE BUT UNIQUE STYLING.

FINISH IS VERY HIGH QUALITY.

AVAILABLE IN SHOW QUALITY CHROME OR BLACK ANODIZED

IF YOUR NOT HAPPY WITH OUR PRODUCT WHEN YOU GET IT AND ITS NOT INSTALLED SEND IT BACK NO QUESTIONS ASKED.

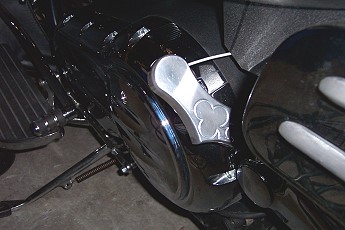

EASY PULL CLUTCH ARM CHANGES THE ANGLE YOUR CLUTCH ARM PULLS THE CABLE AND THE LEVERAGE WILL MAKE IT EASIER TO PULL.
Victory does not have a mechanical clutch adjustment on bikes with Hydraulic Clutch Systems. The E-Z Clutch will fit but we do
not recommend using the kit on Hydraulic systems. To use the easy clutch system on bikes with a Hydraulic Clutch and make shifting much easier, we do recommend changing from a hydraulic to a manual cable system. The E-Z Clutch will work great with the cable clutch systems. Us at own risk.

WILL NOT WORK WITH HYDRAULIC CLUTCH ON SOME VISION OR CROSS BIKES

NOTE 1999-2000 MAY NEED TO RAISE SIDE COVER USING A WASHER SO EZ CLUTCH DOES NOT RUB. OVER TIME THESE BIKES HAD A RUBBER SPACER THAT WORE OFF OVER TIME AND ALLOWED THE SIDE COVERS TO DROP.

V-Script Style

Smooth Style

Fits: Victory Vegas, Victory 8ball, Victory 8 Ball, Victory 8-Ball, Victory Jackpot, Victory Hammer, Victory Kingpin, Victory Cross Country, Victory Vision, Victory V92C, Classic, Victory V92SC, Victory Sport Cruiser, Victory V92TC, Victory Touring Cruiser, Victory Judge, Victory High Ball, Victory Hard Ball, Victory Cross Roads, Victory Boardwalk

Fits all Victory Motorcycles except Vision.

WILL NOT WORK WITH A HYDRAULIC CLUTCH BECAUSE NO ADJUSTMENT AND THIS IS A CABLE PULLEY.

How to install Easy EZ Cutch
I. Remove right side plastic cover to reveal Clutch Cable Adjuster
1. Pull on each corner of the plastic triangle (rubber grommets hold it in place)
2. Be careful not to scratch the plastic if you have rear passenger foot pegs installed
II. Loosen the Clutch Cable
1. Use a 1/2” box wrench on the lower lock nut
2. Use a 9/16” box wrench on the long adjustment nut
3. After you have separated the lock nut from the adjustment nut, turn the adjustment “clockwise” till the
Clutch Cable is very loose
III. Install the EZ-Clutch
1. On the left side of the bike, repeat step “I” to remove the plastic cover just behind the Clutch
mechanism (this will for more room to work)
2. The instructions that come with the EZ-Clutch say to use soft pliers or pliers with a rag to rotate the
stock mechanism “clockwise”; do this and the stock cable with the cylinder end will easily be removed
from the mechanism

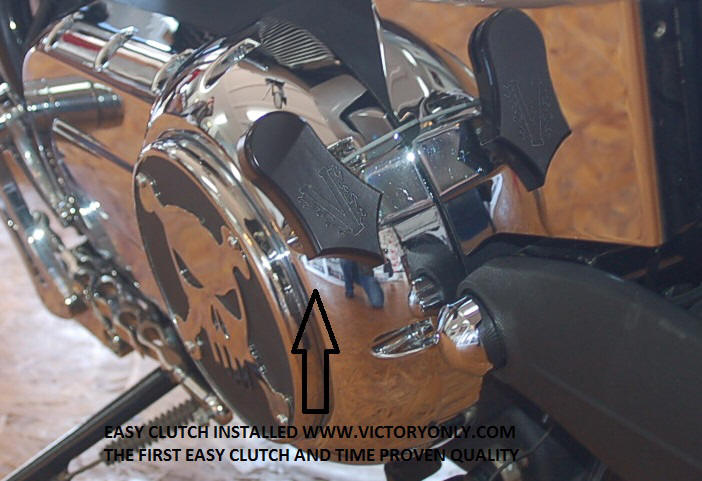

3. Install the EZ-Clutch over the stock mechanism

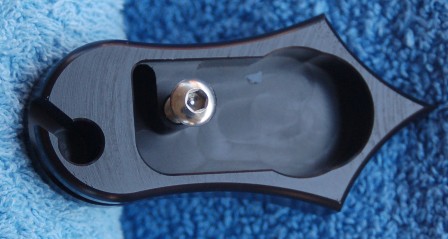

a. Like the instructions say; Use Blue Locktite on the screw that secures the EZ Clutch to the
mechanism (washer goes on the outside against the screw)
4. Using your hand, rotate the EZ Clutch clockwise so you can insert the stock clutch cable end into the
new mechanism
5. NOTE: I had to loosen my cable slightly more and rotate the EZ Clutch quite a bit in order to get the
cylinder to fit inside the new mechanism.
6. BE CAREFUL not to kink or bend the clutch cable!
IV. Adjust the Clutch Cable – This section is critical to proper Clutch operation
1. Turn the Clutch Cable long adjustment nut clockwise
i. It will not turn as much as it did for loosening since you lengthened the pull by changing the
angle of the cable
2. Check the Clutch lever play (see manual)
i. Clutch free-play should be .5-1.5mm per the manual
3. Go back and forth with adjusting and lever actuating to find the proper free-play
4. A trick from the Victory mechanic who showed me how to confirm free-play
i. On the Clutch lever, the black Clutch cable that goes into the lever mechanism is seated in the
handle (round cable into round housing)
ii. Pull this cable in/out of the lever (it will move slightly if there is free play)
iii. This “seats” the Clutch cable in case it was moved while loosening/tightening
5. Perform the 3 types of adjustments until you achieve the correct free-play
6. Start the motorcycle and check for Clutch engagement
i. The tension on the cable after rocking forward in 1st gear may change the free-play in the Clutch
lever
ii. I needed to make further adjustments to my Clutch cable to achieve the proper free-play after
doing this a few times
7. When you are satisfied that the free-play in the Clutch lever is per the manual specifications, tighten the
9/16” lock nut to the long 1/2” adjustment nut
8. Go for a short ride and double check the Clutch cable free-play again (reassurance it is adjusted
properly)
9. NOTE: You will notice that the angle of the cable coming out of the tube going towards the EZ-Clutch
mechanism changed
V. Cleanup
1. Once satisfied with the adjustments, wipe down the chrome to make it sparkle
2. Reinstall both side covers
VI. Observations/Review
1. Instantly I noticed that the amount of force needed to use the Clutch was about 1/2-2/3 lighter!
i. I also noticed that the Clutch lever started to engage significantly closer to the handle
ii. Stock Clutch engagement started about 1 1/2” away from the handle
iii. EZ-Clutch engagement starts about 1/2” away from the handle and has a longer engagement
throw
2. Since the force needed to use the Clutch is less, feathering the Clutch was much easier and smoother

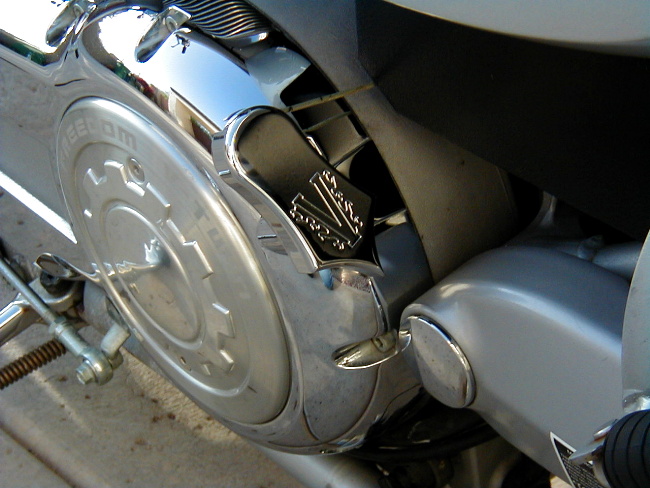

3. The EZ-Clutch accessory looks much better in my opinion compared to the stock mechanism
